PAINTBOX - Shelf Holder

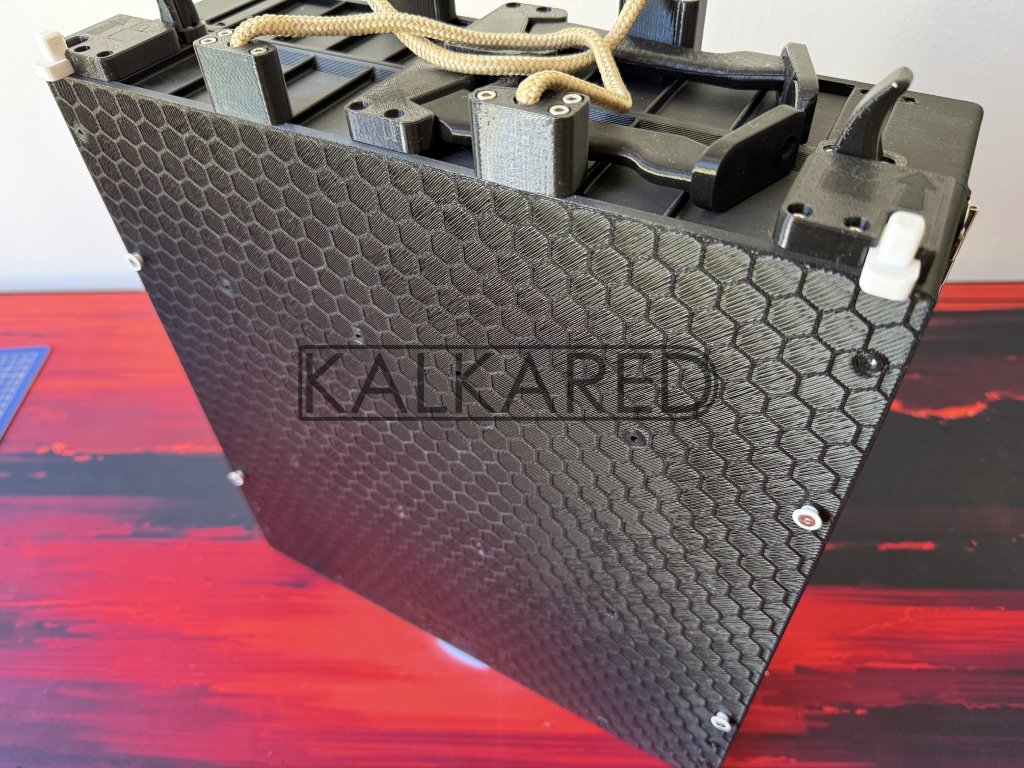

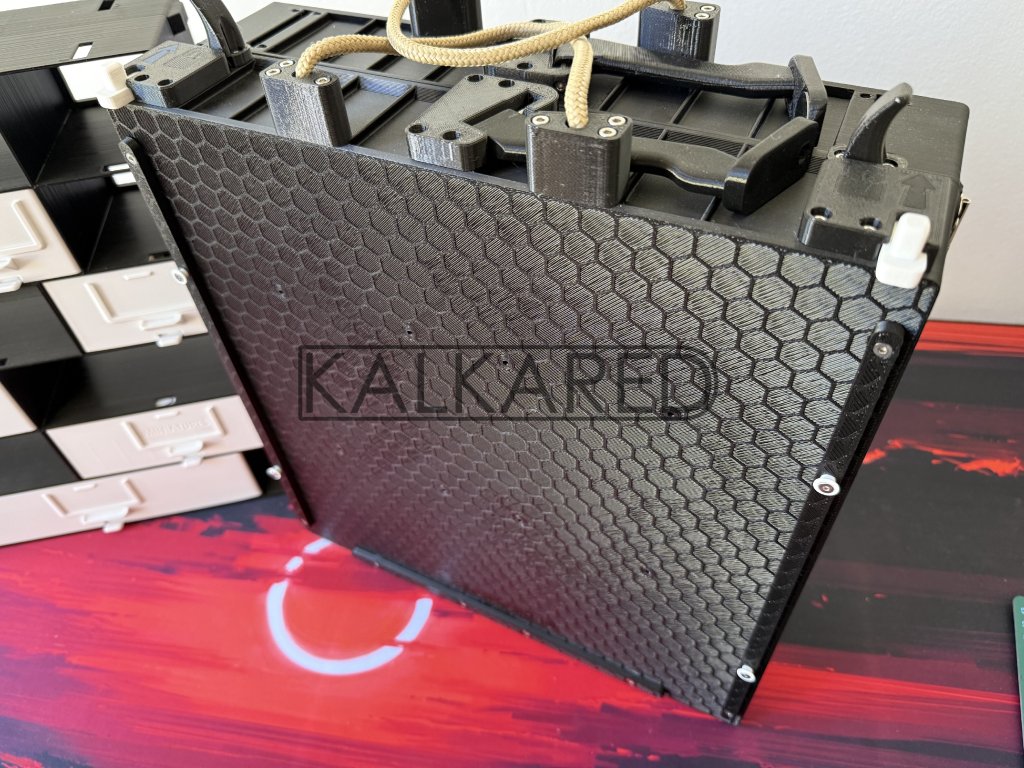

• Allows to hold on the back of PAINTBOX Basic Unit a Detachable Shelf and hobby cutting mat A4 (300x220 mm) or A3 (450x300 mm)

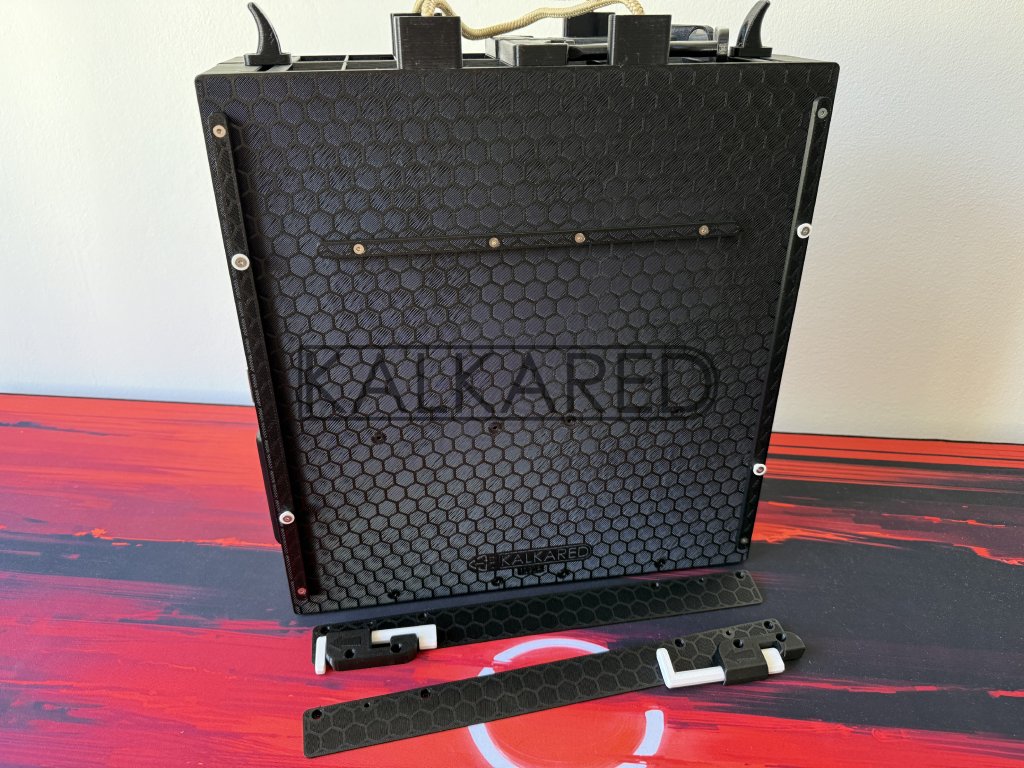

• Standalone version - Allows to attach a Shelf as a part of doubledecker or on a singledecker. If you want to use it as top deck or as a single deck, please order also Shelf Lock Horizontal

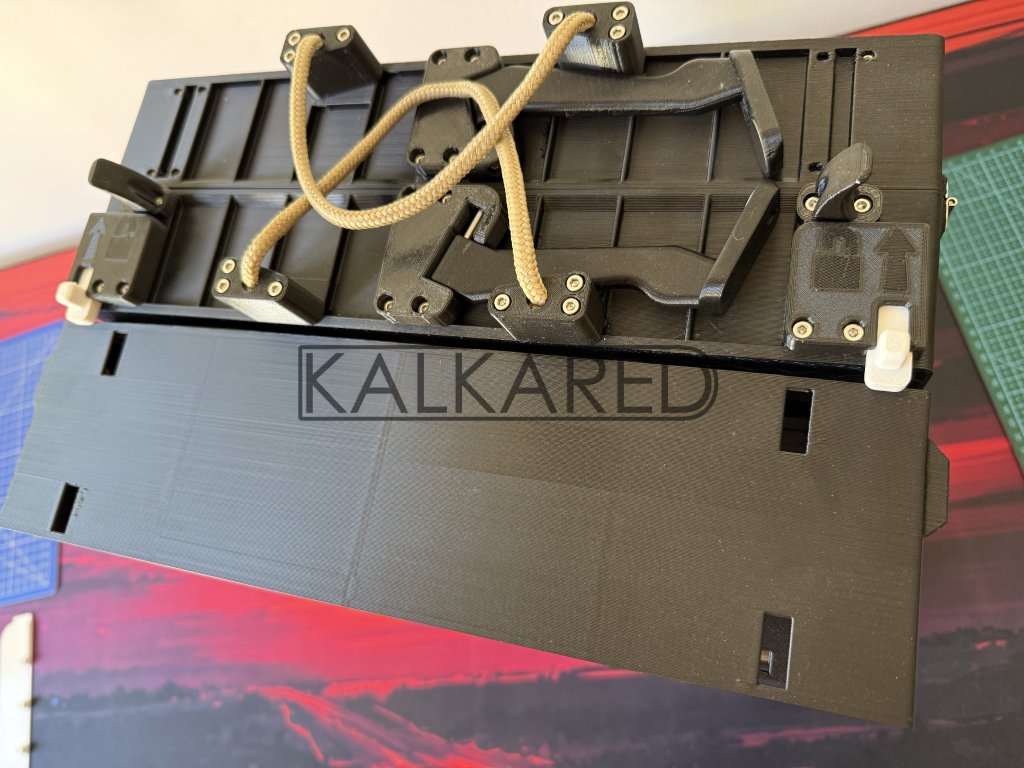

• Standalone doubledecker version - Allows to attach a shelf to the bottom deck of a Basic Unit and top deck will have Vertical locks

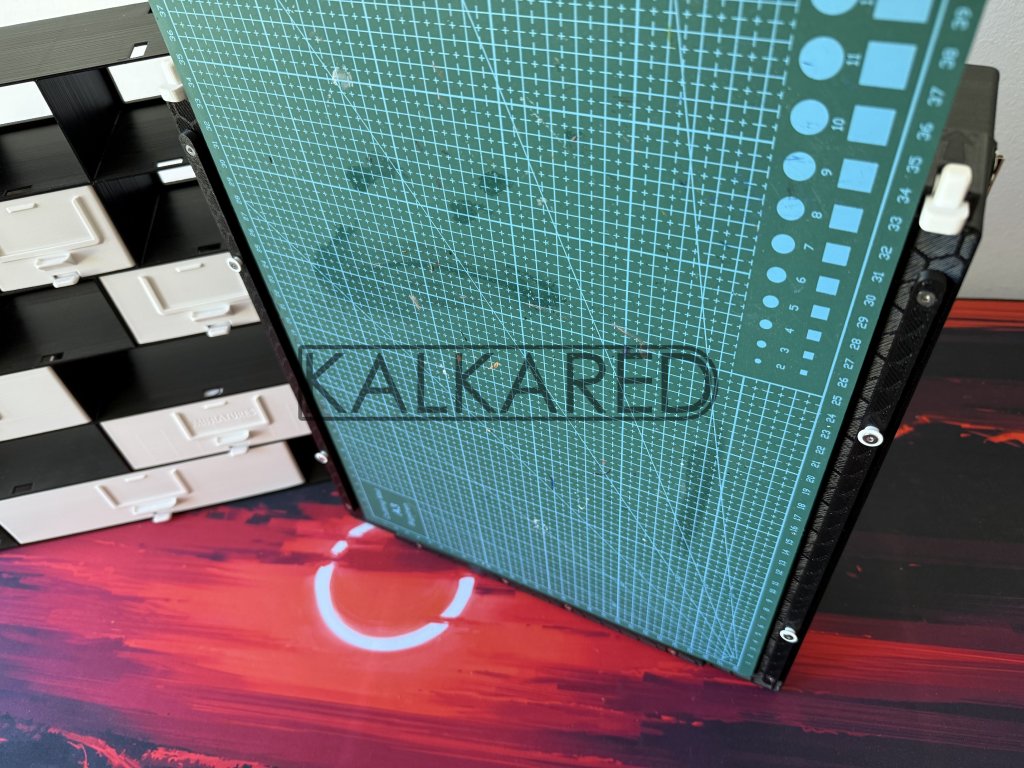

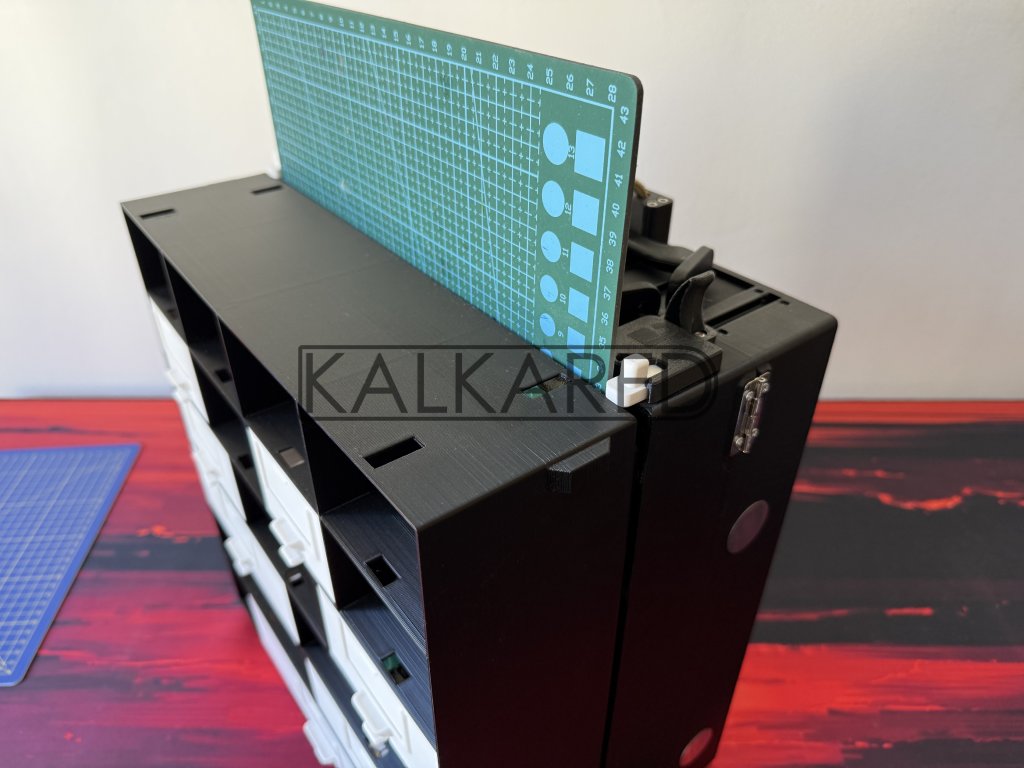

• Shelf Holder + Mat Holder - Allows to attach a Shelf as a part of doubledecker or on a singledecker. Once the Shelf is attached, it will create gap for your cutting mat. If you want to use it as a top deck or as a single deck, please order also Shelf Lock Horizontal.

• Shelf Holder + Mat Holder doubledecker - Allows to attach a Shelf at the bottom deck and top deck will have vertical locks with mat holders.

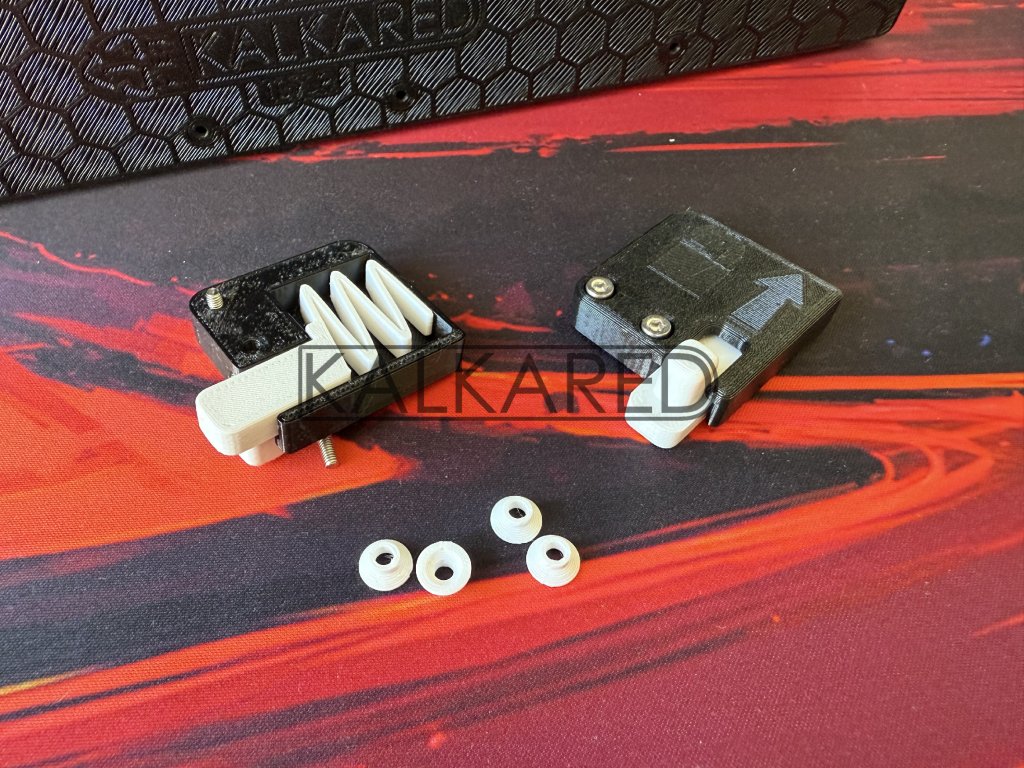

• Shelf Lock Horizontal - Allows to lock a Shelf at the Top deck position or doubledecker Basic Unit or to lock a Shelf on singledeck Basic Unit. Raises the storage and transport security!

• Component list for Standalone version
  • 4 x TAPERED PIN
  • 4 x ALLEN COUNTERSUNK SCREW M3x8
  • 4 x NUT M3

• Component list for Standalone doubledecker version
  • 4 x TAPERED PIN
  • 4 x ALLEN COUNTERSUNK SCREW M3x8
  • 8 x NUT M3
  • 1 x LOCK VERTICAL BODY LEFT
  • 1 x LOCK VERTICAL BODY RIGHT
  • 2 x LOCK VERTICAL KEY
  • 4 x ALLEN HEAD SCREW M3x6

• Component list for Shelf Holder + Mat Holder
  • 2 x DISTANCE SIDE
  • 1 x DISTANCE MIDDLE
  • 4 x TAPERED PIN
  • 4 x ALLEN COUNTERSUNK SCREW M3x8
  • 12 x NUT M3
  • 4 x ALLEN HEAD SCREW M3x12

• Component list for Shelf Holder + Mat Holder doublecker
  • 2 x DISTANCE SIDE
  • 1 x DISTANCE MIDDL
  • 2 X MAT HOLDER SIDE
  • 4 x TAPERED PIN
  • 1 x LOCK VERTICAL BODY LEFT
  • 1 x LOCK VERTICAL BODY RIGHT
  • 2 x LOCK VERTICAL KEY
  • 8 x ALLEN COUNTERSUNK SCREW M3x8
  • 4 x ALLEN COUNTERSUNK SCREW M3x12
  • 6 x ALLEN HEAD SCREW M3x6
  • 4 x ALLEN HEAD SCREW M3x12
  • 22 x NUT M3

• Seznam komponent Zámek police horizontální
  • 1 x LOCK HORIZONTAL BODY LEFT
  • 1 x LOCK HORIZONTAL BODY RIGHT
  • 1 x LOCK SHUFFLE LEFT
  • 1 x LOCK SHUFFLE RIGHT
  • 4 x SQUARED NUT M3
  • 4 x ALLEN HEAD SCREW M3x8

• Compatible with modules shown in Related items menu

• Please pay attention to page 9, 10, 11 and 20 where you can read more about this module

• 3D model of the whole project in different configurations

  • EXE File with model and software running the presentation (it will tell you that you don't have the licence, that is alright, because you don't have and don't need to have one :) )
  • If don't trust us that much, you can download this EASM file and download eDrawings program on your own. You can do this on Windows, Mac, iOS, or Android device.
  • Program is handled by mouse, you can rotate model with middle button, with ctrl you can shift the view, you can click on all parts and make it transparent or disappear completely and the best thing is that you can choose configuration from configurations menu right bottom corner and see all kinds of setups you can have this system.
  • Please comment here how you like the model and if you have some special wish or some color which is not branded or anything other. Wet palette is in the process.

         VIDEO TBA

• Material: PETG (is not affected by UV light or embrittlement in time and has higher stiffness unlike usual PLA). Printed with multiple colors. If you have a special request and want to have your insert in a different color, contact us first please.


• Most of our products are printed on order and manufacture time is taking around 2 weeks. We are keeping in stock only the most buyed items, more in ABOUT US.


• Colors of parts can be very often different than in reality for prototype reasons but there sill applies the rules about Standard colors.


• This is not an officially licenced product.


• Declaration of Comformity, Manual and Layout of components can be found on THIS page.

• Goods are Built to Order and cannot be returned within the statutory 14 day period.
